INSTRUCTIONS FOR CLEAN REMOTE FOR MULTI-BED TV

FOR HEALTHCARE TVs WITH THIS FUNCTION ONLY

CR3BCB-H

Battery Installation:

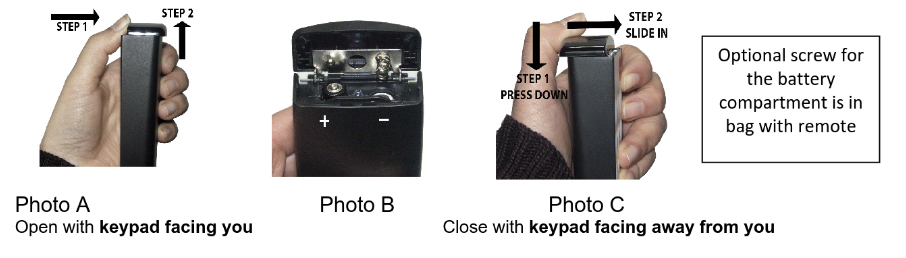

1. To open cover: With keypad facing you, first slide dark lens cover away from you (photo A, step 1) and then lift lid upward from the back (photo A, step 2)
2. When placing two AAA batteries in the compartment note the + and - symbols on the metal hinge should make contact with the corresponding + and - end of each battery (photo B).
3. Closing cover: With keypad facing away from you gently close cover by pressing downward (photo C, step 1) and sliding it toward the front (keypad) until it is aligned. (photo C, step 2)
4. Test remote by pressing the power button; the LED should light, indicating that the batteries are in correctly. If the LED does not light, then the batteries are either in wrong or the batteries are bad.

---

IMPORTANT

Before proceeding, please insure that your TV has the Multi (bed)-Code feature and the TV has been set to the appropriate Multi (bed)-Code setting. You will need to refer to your TV’s manual for TV Multi (bed)-Code setup instructions.

1. Press and Hold the SETUP button on the remote for approximately two seconds then also Press and Hold the ENTER button. Once a solid red light appears on the remote release both buttons.
2. Enter the corresponding 3 digit Multi-bed code from the list below.

Test the remote to insure proper operation; If everything is working you are done, if not please insure your TV is also set to the correct Multi-Bed code and repeat Step 2 above.

---

CLEAN REMOTE FOR MULTI-BED TV INSTRUCTIONS

FOR HEALTHCARE TVs WITH THIS FUNCTION ONLY

CR3BCB-H

MULTI-BED TV CODES

RESET: To reset remote back to original manufacturer settings, or reset the remote to operate a standard TV: Press hold both the Setup and the CC button down at the same time until the red LED light blinks quickly 3 times, then release both buttons. Then follow the Easy Setup instructions below.

EASY STANDARD TV SETUP (No Multi-Bed)

1. Turn on the TV and then stand back about 5 feet from TV and Point the remote at the CENTER of the front panel of the TV. It will not be necessary to point the remote at that exact area once the remote is set-up.
2. Press and firmly Hold down the Setup button, do not release. The LED will blink once and then after 7 seconds it will start code search. The LED will continue to blink every 2 seconds. Once your TV shuts off immediately remove your finger from the Setup button; the code automatically locks in.
3. Testing the remote: For TV Only: Test Power, Volume and Channel Functions, if all work correctly setup is complete. If not, you may not have an exact code match. Start again at step #1. The code search will continue where it left off.

Important Note: If you think you missed the code or you intend to use the remote on a different brand TV: See RESET instructions above.
